HX2
RECO’s next generation of in-line heaters. Lighter, smaller, and more thermally efficient than ever before, the HX2 delivers up to 6.0 million BTU/HR of heating as standard, with higher capacities possible.
Learn More
Heat Exchangers
RECO builds shell-and-tube type heat exchangers that transfer heat by direct surface contact which allows water (and other liquids) to be heated in particularly large volumes. Our shell and tube heat exchangers are designed to provide the most efficient heat transfer possible along with the ultimate in long term durability and reliability.

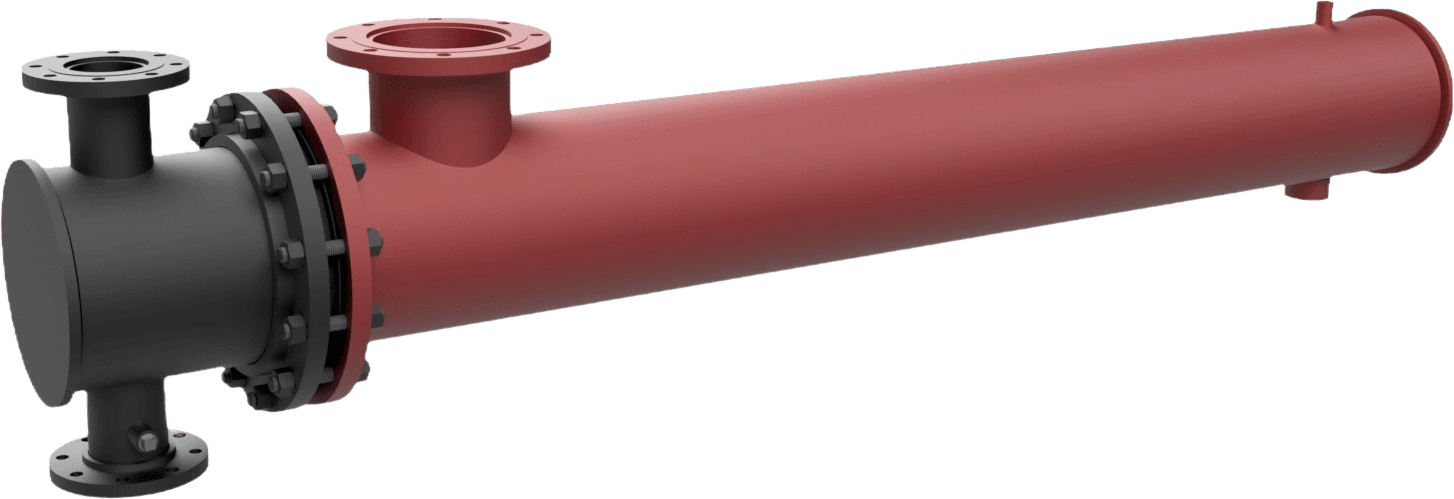

Shell and Tube Heat Exchangers
Used for generating domestic hot water or for process heating. They improve performance in three ways: 1. Optimum Heat Transfer – standard and custom units are carefully designed using HTRI software and Computational Fluid Dynamics software to ensure that the most efficient heat transfer is obtained and fluid velocities are restricted to avoid erosion of the tubes and shell. 2. Reliability – our heat exchangers are meticulously manufactured with decades of experience. Our ASME welders fabricate the shells and element heads and are renowned for their quality of work. Tube-sheets are CNC machined in our factory with strict quality control. Tube to tube-sheet sealing is achieved by RECO developed SuperSeal tube technology to ensure a positive, leak-tight seal. All heat exchangers are fully tested prior to shipment. 3. Longevity – careful design and material selection ensure our heat exchangers will be in service for many years to come.
Key Features and Benefits
- National Board registered. Optional CRN registration.
- Designed using Computational Fluid Dynamics (CFD) for optimum fluid flow and heat transfer.
- All tube-sheets are double grooved for optimum sealing reliability.
- Shells can be designed for higher pressure rating or with additional corrosion allowances.
- Custom sizes and connections are available.
- Available in 2, 4 or 6 pass configurations.
- Can be designed with the heating/cooling fluid in the shell or the tubes depending on the application.
- Special exterior coatings and colors available.
- Supports can be provided to suit specific seismic requirements.
- Controls packages can be provided for a complete installation.
